More vehicle data. More process understanding.
More development security.Driving Automotive Mobility -
through optical intelligence
Challenges of the automotive industry -
Why precise measurements are essential
The automotive industry is undergoing profound change: electromobility, alternative fuels and autonomous driving are placing new demands on research, development and quality assurance. At the same time, the demands on environmental standards, efficiency and safety are increasing.
LaVision provides optical high-precision measurements for the analysis of flow, combustion, spray behavior and material deformation – quickly, reliably and without mechanical intervention. In this way, development processes can be accelerated, emissions reduced and product quality sustainably increased.
LaVision - Your partner for optical high-precision measurements in the automotive industry
LaVision is the technology leader for optical measurement systems in research, development and industrial production. Our solutions provide detailed data on combustion processes, aerodynamic conditions, injection systems, material behaviour and the quality of critical components such as windscreens.
With state-of-the-art image processing, synchronized sensor technology and intelligent evaluation software, we enable leading OEMs and suppliers to gain deeper insights into their processes – for better products, safer vehicle systems and sustainable innovations.
Sharpening our view of the future - with optical precision for autonomous driving
Autonomous driving requires uncompromising visibility. Only when windscreens are of the highest optical quality and camera and sensor systems are reliably cleaned can safety-relevant driving functions work flawlessly – in any weather, in any situation. LaVision supplies certified test procedures and high-performance measurement solutions for this purpose – from glass qualification to climate testing in the wind tunnel.

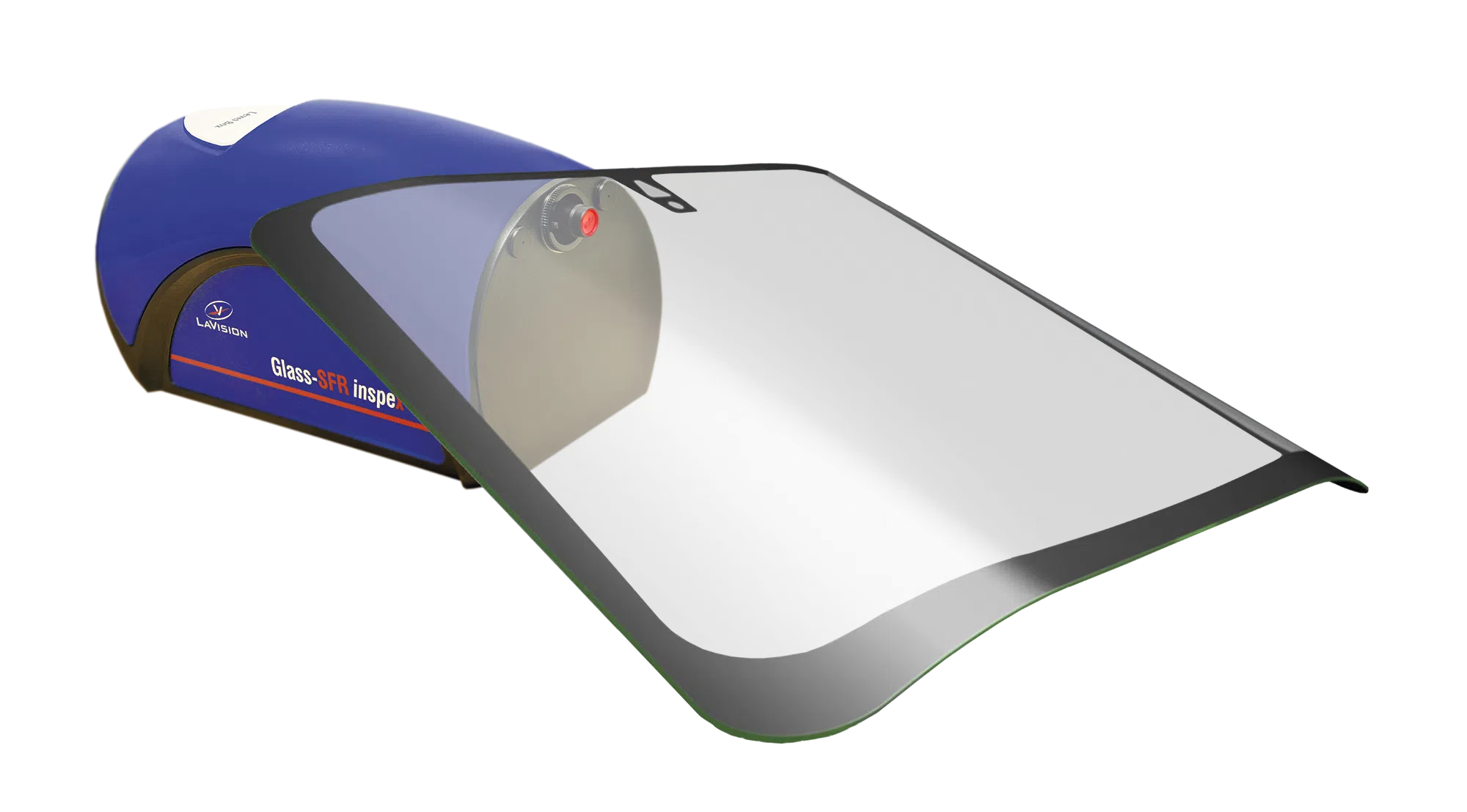

Glass-SFR inspex - Quality assurance for windscreens and ADAS (FAS) from level 3
You are currently viewing a placeholder content from YouTube. To access the actual content, click the button below. Please note that doing so will share data with third-party providers.
More Information
Autonomous driving functions are based on precise image data and therefore on a windshield with optimum quality – without distortion, loss of contrast or refractive power deviations. LaVision’s Glass-SFR inspex provides standardized test procedures for the highest requirements. The system ensures that the optical quality of the lens meets the growing demands for safety and functional stability. This makes a decisive contribution to the reliability of driver assistance systems as early as the development and production stages.
Performance features:
- Analysis of the optical quality in the ADAS camera field of view
- MTF / SFR measurement for assessing contrast transmission and detail resolution
- Optional: Diopter analysis to assess the refractive power
- Standardized measurement according to ISO 12233
- Use in the laboratory or on the production line
Glass-SFR inspex system features:
- Analysis of the modulation transfer function (MTF/SFR) in the camera field of view
- 2D diopter mapping with <1 mdpt resolution
- Fully automated test sequence
- Modular system design for R&D and end-of-line
Cleaning systems for ADAS (FAS)- Spray characterization for cameras & sensors
Cameras and sensors are only as powerful as their field of vision. To achieve this, cleaning systems must atomize perfectly, distribute evenly and minimize consumption. LaVision supports optimization with optical real-time diagnostics.
Performance features:
- Spray analysis for the development of efficient ADAS (FAS) cleaning systems
- Droplet size and velocity measurement
- Optimization of nozzle geometry and distribution
- Use in R&D and quality assurance
SprayMaster inspex / ParticleMaster inspex System features:
- Particle and droplet characterization in real time
- Size, shape, speed, distribution and mass flow
- Robust, splash-proof design
- Calibrated, interchangeable probes
Climatic wind tunnel simulation - real thermal conditions under control
ADAS (FAS) functionality must also be guaranteed in rain, snow, ice or cold. Testing in climatic wind tunnels requires a reliable reproduction of natural conditions – with exact data on particle and droplet dynamics.
Performance features:
- Measurement of rain, snow and ice parameters
- Real-time detection of size, shape, speed and flow rate
- Support with the optimization of heating systems and nozzles
- Use in R&D, homologation and system validation
ParticleMaster inspex (climatic wind tunnel mode) System features:
- Particle and droplet sensors with high measuring frequency
- Splash water protection for use in wind tunnels
- Pre-adjusted measuring probes and statistical distribution evaluation
- Integration into wind tunnel infrastructure possible
Overview of other innovative
measurement technologies
for the automotive sector
Aerodynamics / flow visualization
You are currently viewing a placeholder content from YouTube. To access the actual content, click the button below. Please note that doing so will share data with third-party providers.
More Information

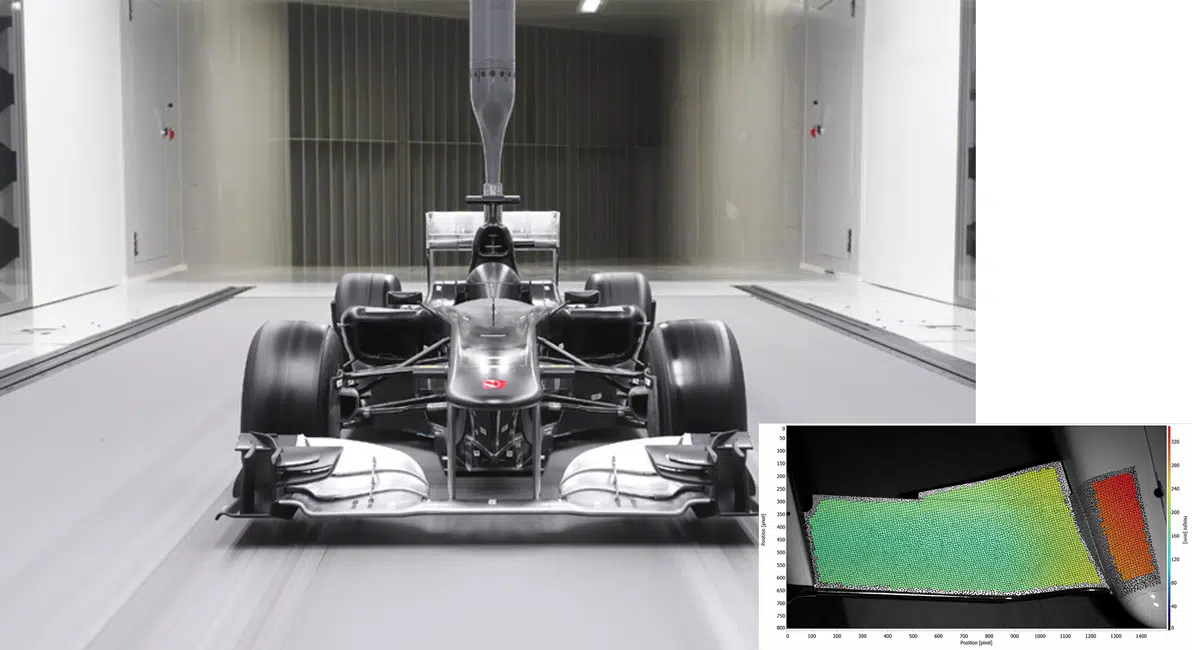

Optimized aerodynamics reduces drag, lowers energy consumption and increases comfort and driving stability. LaVision FlowMaster systems enable detailed 2D and 3D flow analyses around the vehicle – both in the wind tunnel and on the test bench.
Performance features:
- 2D and 3D flow analysis with high resolution
- Examination of underbody, spoiler, cooling air ducting
- Measurement in wind tunnel and vehicle
- Analysis of cooling systems and climate flow
FlowMaster system features:
- Laser-assisted Particle Image Velocimetry (PIV)
- Suitable for standard and high-speed analyses
- Can be combined with thermal analysis
- Can be used in the wind tunnel or test bench
On-road aerodynamics measurement
You are currently viewing a placeholder content from YouTube. To access the actual content, click the button below. Please note that doing so will share data with third-party providers.
More Information

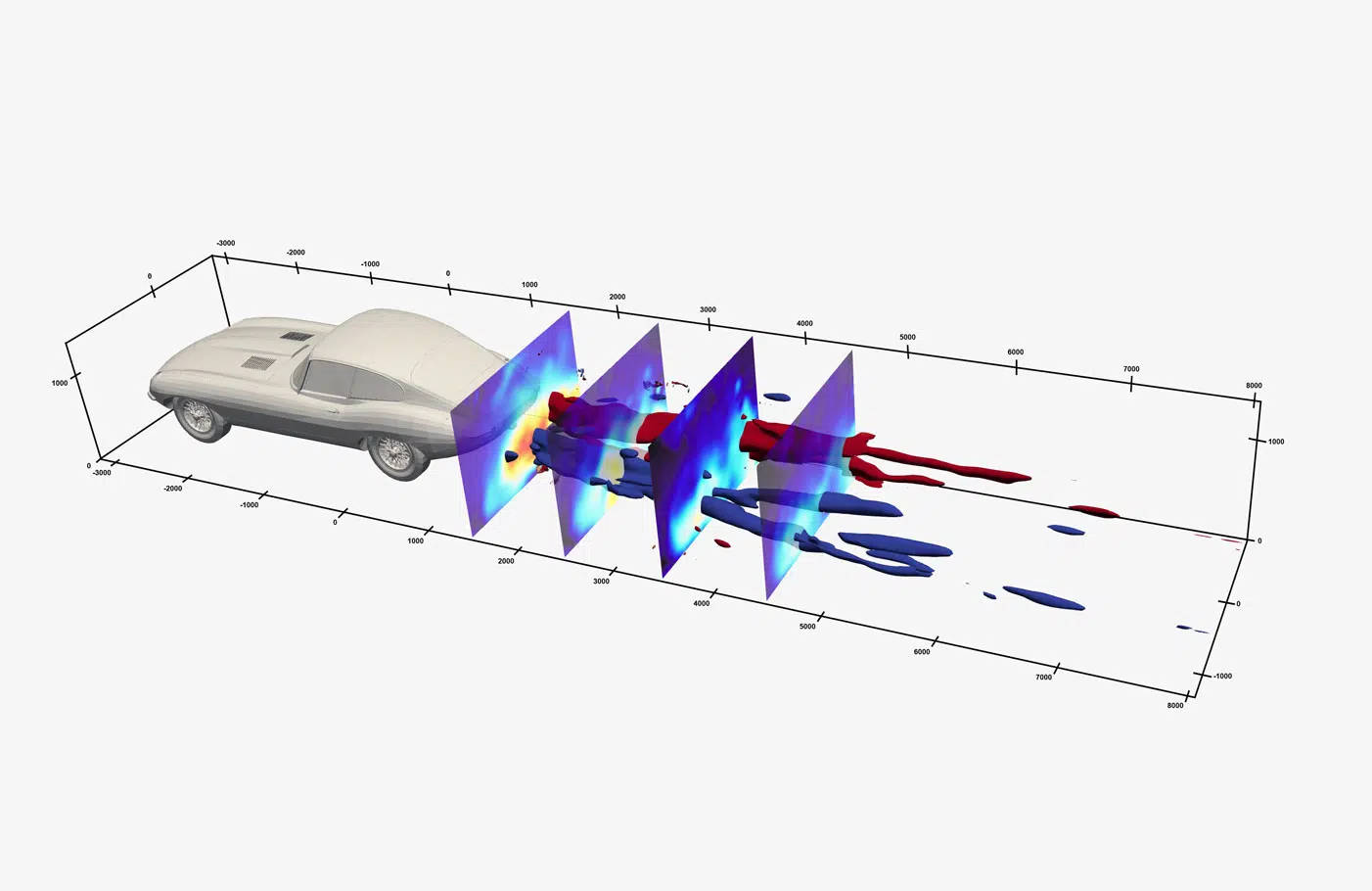

Practical measurements on real roads record aerodynamic wake flows under actual driving conditions. The ring-of-fire method provides realistic vortex structures – essential for aerodynamically efficient vehicle concepts.
Performance features:
- Visualization of the wake flow in road operation
- Measurement of vortex structures behind the vehicle
- Analysis of the influence on air resistance and stability
- Database for realistic aerodynamics development
FlowMaster – Ring-of-Fire – System features:
- Mobile laser system for field measurements
- Onboard data acquisition and processing
- Synchronization with vehicle and environmental data
Spray diagnostics, paint and coating analysis

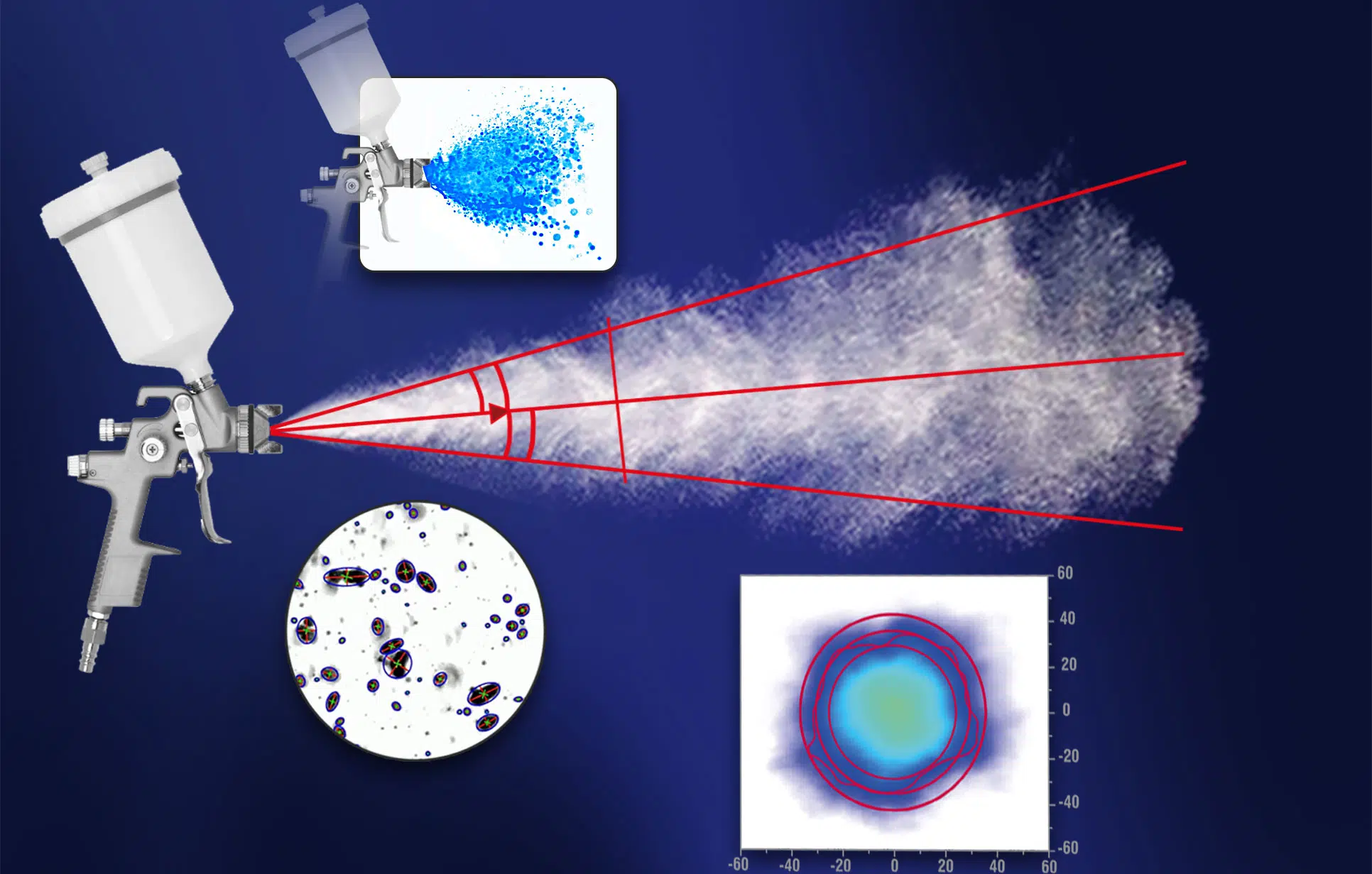

Uniform paint application is crucial for quality and resource efficiency. The SprayMaster and ParticleMaster systems enable precise analysis of spray distribution – inline or in the laboratory.
Performance features:
- Characterization of the spray pattern (shape, uniformity)
- Analysis of droplet sizes and distribution
- Quality control for painting results
- Support for online production monitoring
SprayMaster inspex / ParticleMaster inspex System features:
- Camera-based drop measurement
- Can be used inline or in the laboratory
- Can be combined with droplet size analysis (DIA)
- Reproducible test protocols
Alternative fuels - for clean combustion
You are currently viewing a placeholder content from YouTube. To access the actual content, click the button below. Please note that doing so will share data with third-party providers.
More Information

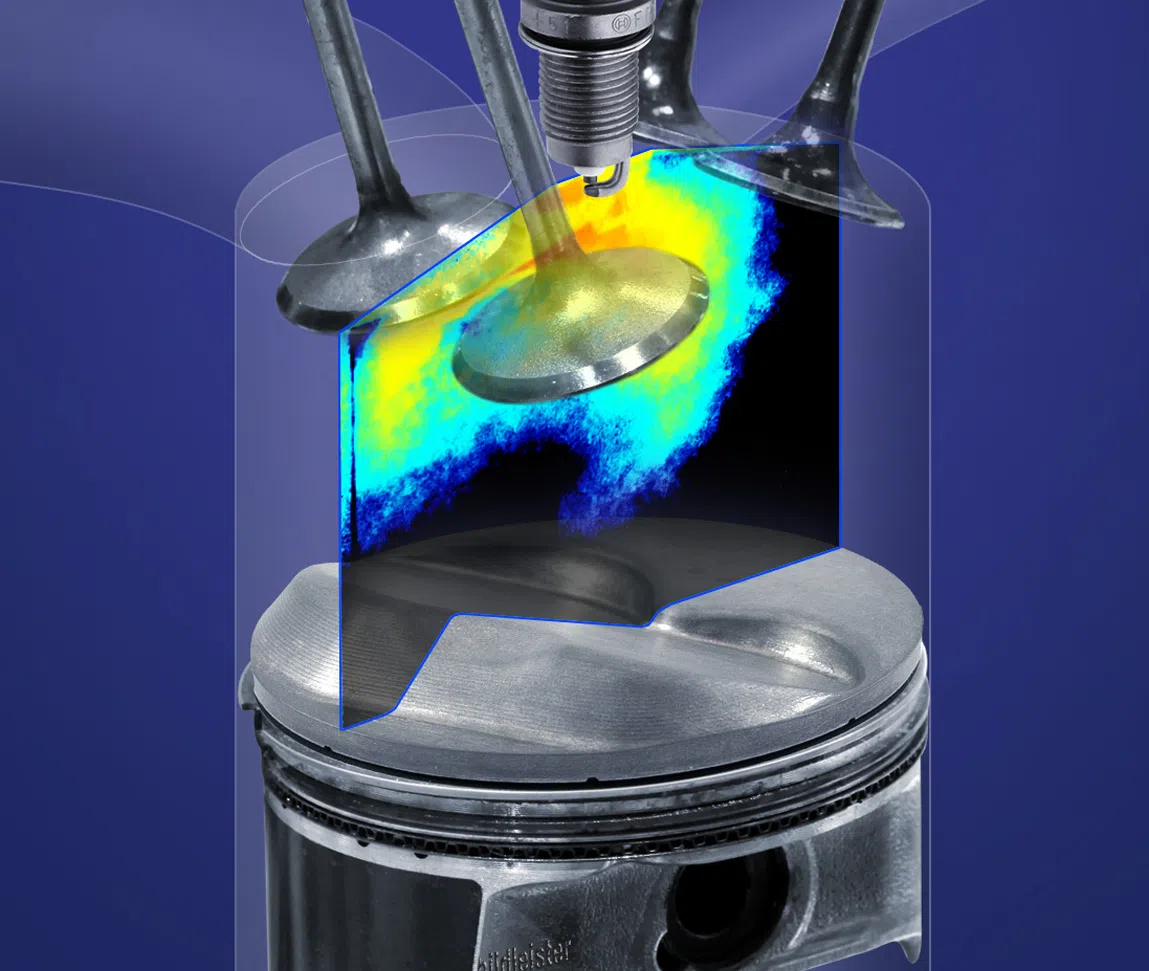

The low-emission use of hydrogen, ammonia, e-fuels and synthetic fuels requires precise combustion analyses. LaVision systems make flames, temperatures and chemical reactions visible – for clean, efficient engines.
Performance features:
- Visualization of the flames in real time
- Analysis of the temperature distribution in the combustion chamber
- Laser-induced fluorescence (LIF)-based measurement of chemical reactions
- Support for a low-emission combustion strategy
FlameMaster system features:
- LIF for reactive flames
- Temperature and species measurement in the combustion chamber
- High-resolution imaging
Fuel injection and catalytic converter analysis
A uniform spray geometry improves combustion and reduces emissions. LaVision systems enable the detailed analysis of injection processes – even in SCR systems for exhaust gas aftertreatment (selective catalytic reduction is a process for reducing nitrogen oxides in the exhaust gases of combustion engines).
Performance features:
- Analysis of spray geometry and droplet size
- Support in the development of modern injectors
- Verification of shot-to-shot variation and homogeneity
- SCR sprays: Urea injection for exhaust gas aftertreatment
SprayMaster inspex / ParticleMaster inspex – System features:
- High-speed imaging
- Dynamic image analysis (DIA) to determine size distributions and shape parameters of particles
- Suitable for gasoline, diesel, e-fuels, urea injection
Endoscopic combustion chamber / in-cylinder visualization
You are currently viewing a placeholder content from YouTube. To access the actual content, click the button below. Please note that doing so will share data with third-party providers.
More Information

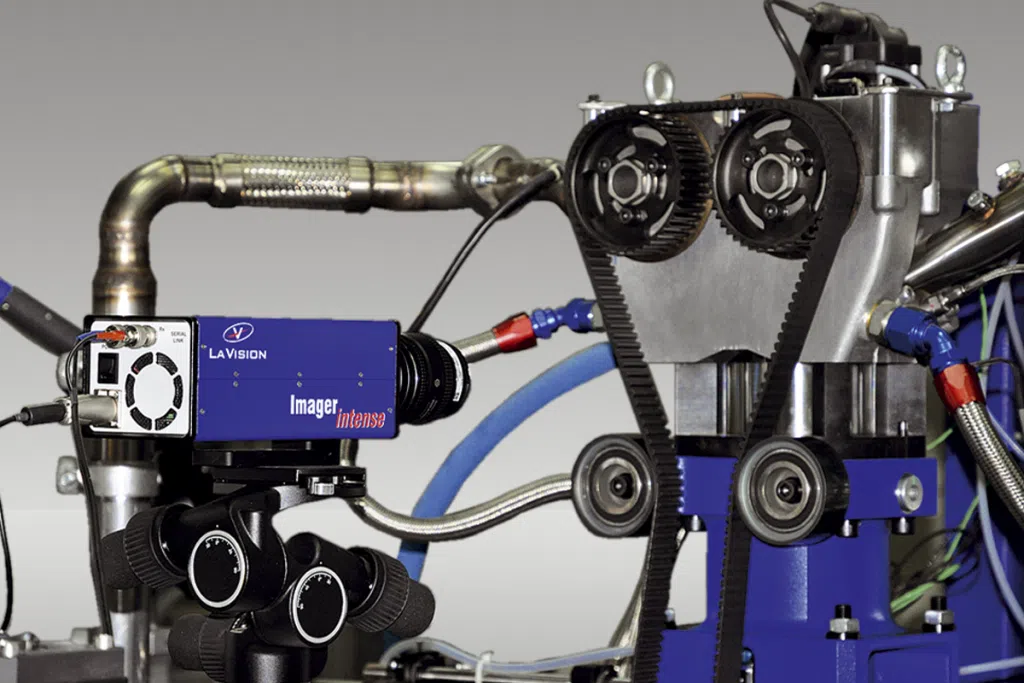

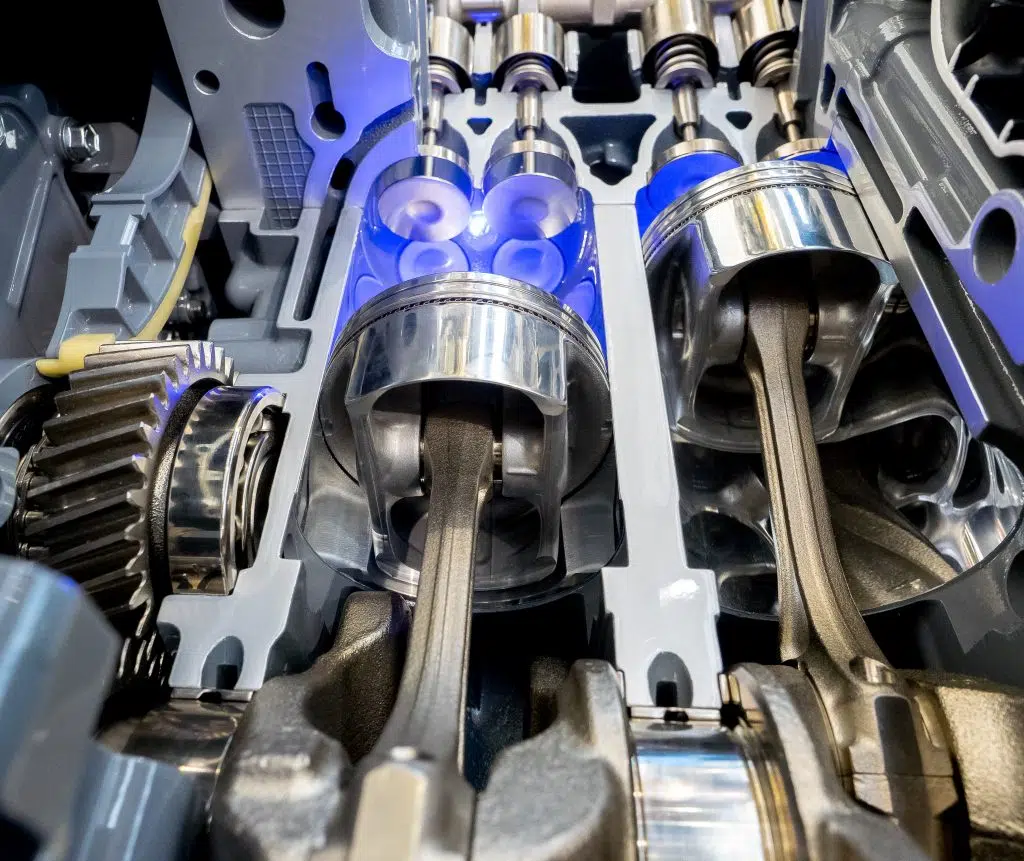

The EngineMaster allows a deep look into the heart of the engine: injection jets, the start of combustion and flame propagation can be analyzed in high resolution – without complex conversions. Critical phenomena such as wall wetting or pre-ignition are detected and optimized at an early stage. Reactive processes in the cylinder can only be detected with optical precision. LaVision technologies make thermodynamic processes visible – for precise engine analysis and development.
Performance features:
- Temperature measurement with crank angle resolution
- Visualization of injection jet, wall wetting & ignition
- Visualization of turbulent and chemical flame processes
- Optimization of mixture formation, ignition, NOx avoidance
- High-speed imaging directly in the cylinder
- Can be combined with pressure indexing & emission analysis
- Robust, heat-resistant design for test benches & series engines
- Ideal for the development of new combustion chambers and fuel strategies
EngineMaster inspex system features:
- Pressure-resistant endoscope optics for direct cylinder observation
- Synchronizable high-speed cameras with protection system
- Water cooling & gas flushing for long-term operation
- Flexible integration into existing test environments / Can be combined with CFD validation
Digital image correlation for material & structure testing
Precise knowledge of strain behavior and material limits is crucial for modern lightweight construction concepts. LaVision’s StrainMaster delivers digital image correlation with the highest precision – for comprehensive test data that can be seamlessly combined with FEM simulations and structural tests. This is how we make deformation behavior visible – for safer, lighter and more resilient vehicle components.
Performance features:
- Full-surface, non-contact measurement of strain, displacement & deformation
- Analysis under static and dynamic load (e.g. crash, vibration)
- High-resolution 2D or 3D acquisition of structural behavior
- Validation of simulations (CAE) & material models
StrainMaster system features:
- Stereoscopic camera systems with high frame rates
- Flexible scalability from the component to the overall construction
- Real-time evaluation with synchronized load data
- Integration into test benches, climate chambers and modal analysis setups
Thermal airflow analysis for more efficient heat management

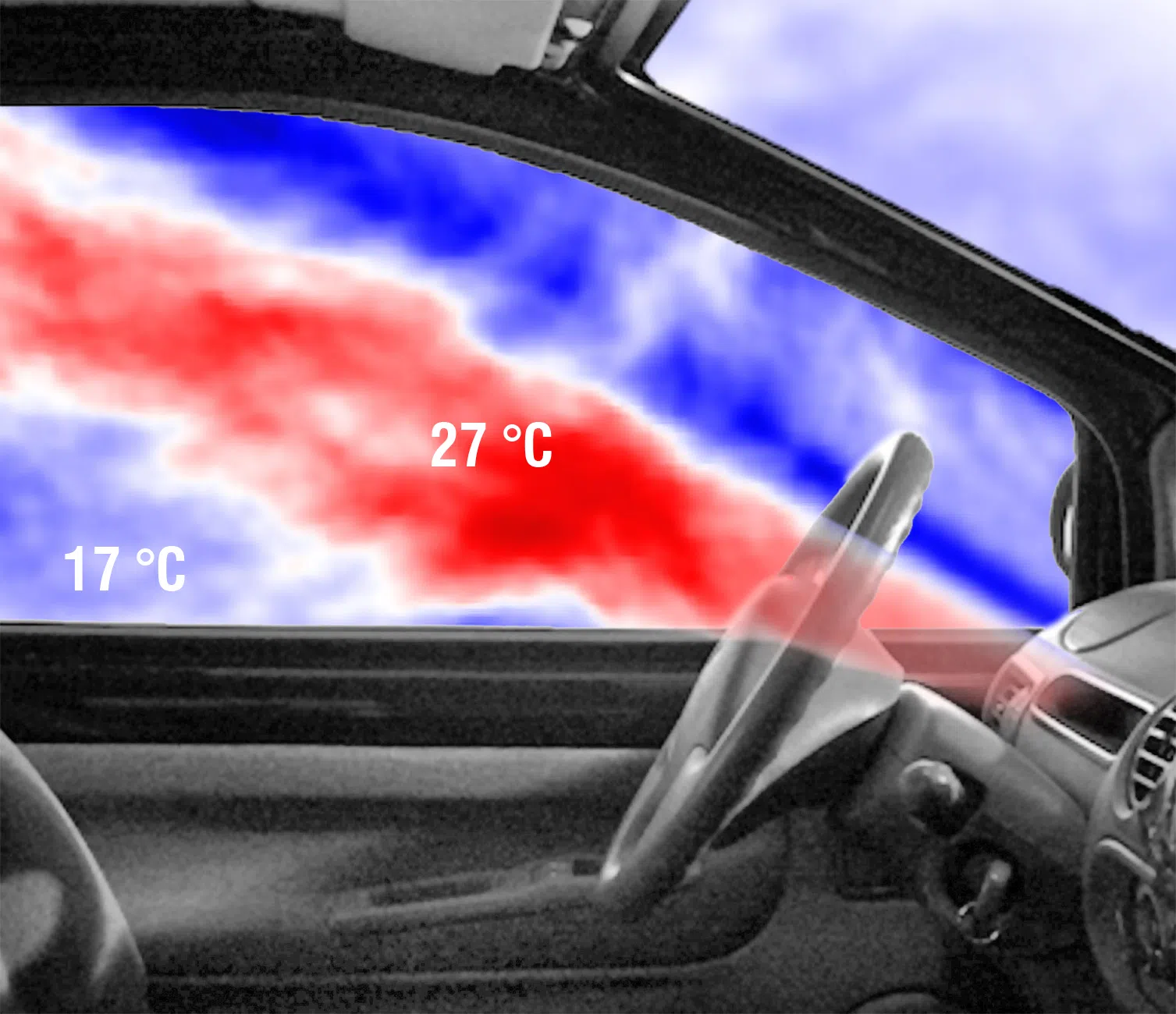

FlowBOS makes visible what was previously hidden: thermal air movements and leaks in the vehicle. The system is ideal for optimizing HVAC systems (heating, ventilation, air conditioning), for leakage control or for thermal management of electric vehicles – directly in the vehicle or on the test bench.
Performance features:
- Visualization of thermal air and gas flows in the interior
- No particles or markers required – 100% seeding-free
- Flexible fields of vision – from small assemblies to the entire vehicle interior
- Thermal leakage monitoring for battery cooling or cabin air systems
- Highly sensitive BOS analysis for temperature gradients & flow direction
FlowBOS system features:
- Camera-based system for thermal flow analysis (BOS technology)
- Can be used for leak testing, ventilation optimization, battery cooling
- Visualization based on refractive index changes (refractive image shift)
- Live evaluation & simple integration in the vehicle – without conversions
- Can be used in R&D, component development and series production validation
You are currently viewing a placeholder content from YouTube. To access the actual content, click the button below. Please note that doing so will share data with third-party providers.
More InformationYou are currently viewing a placeholder content from YouTube. To access the actual content, click the button below. Please note that doing so will share data with third-party providers.
More InformationIndividual order measurements
and customer-specific solutions
In addition to our high-precision measuring systems, we also offer customized solutions, contract measurements and system rental for special applications. Our experts work closely with automotive manufacturers and suppliers to design customized measurement solutions for research and development projects. Whether as a single contract measurement or a long-term partnership, LaVision delivers reliable and accurate results for the most demanding applications.
