Precise injection. Controlled combustion.
Maximum efficiency.Optical quality assurance and production monitoring of fuel injection systems
Maximum precision in quality control - Efficient & sustainable fuel injection
The quality of fuel atomization and injection is crucial for the efficiency, performance and environmental friendliness of combustion engines. An uneven spray pattern, faulty fuel distribution or inconsistent droplet sizes can significantly impair combustion efficiency and increase pollutant emissions.
With LaVision’s high-precision optical measurement systems, you can ensure that your fuel injection systems meet the highest requirements. Whether for diesel injection, gasoline direct injection or alternative fuels such as hydrogen and ammonia – our modular systems enable complete quality control for all types of fuel atomization and injection technologies.
Continuous quality control gives you decisive advantages
- The quality of fuel sprays has a significant influence on the efficiency, performance and emission values of an engine.
- Precise real-time measurements help to detect injection errors at an early stage, minimize rejects and optimize production processes.
- Particularly with new fuels such as hydrogen or e-fuels, precise injection analyses are crucial for efficient and clean combustion.
Intelligent quality control with the Quality Control Software - Seamless integration into production
Comprehensive measurement of all key parameters

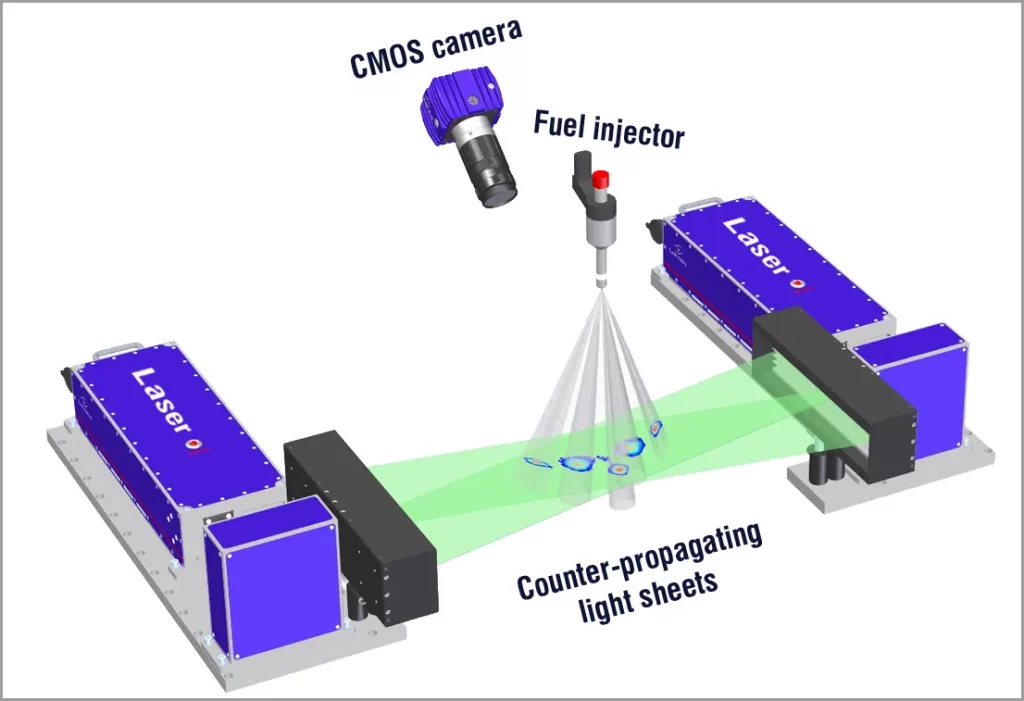

- Determines geometry data from light section, spray jet images and globally illuminated spray images.
- Depending on the optical arrangement, DaVis provides data on the spray pattern (radial sections) or on the beam shape (axial sections).

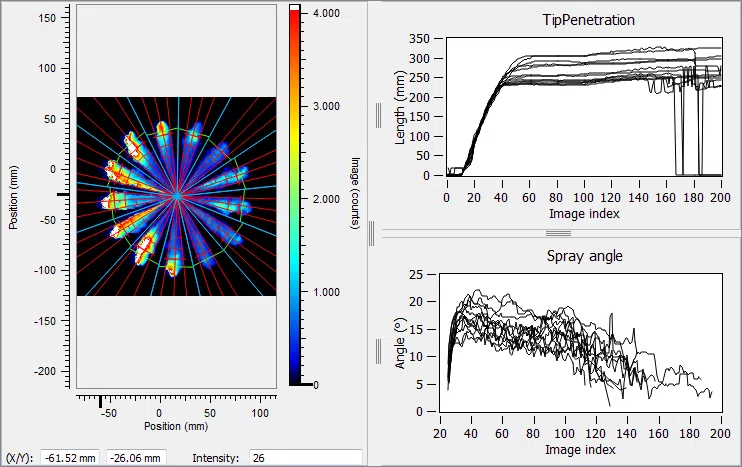

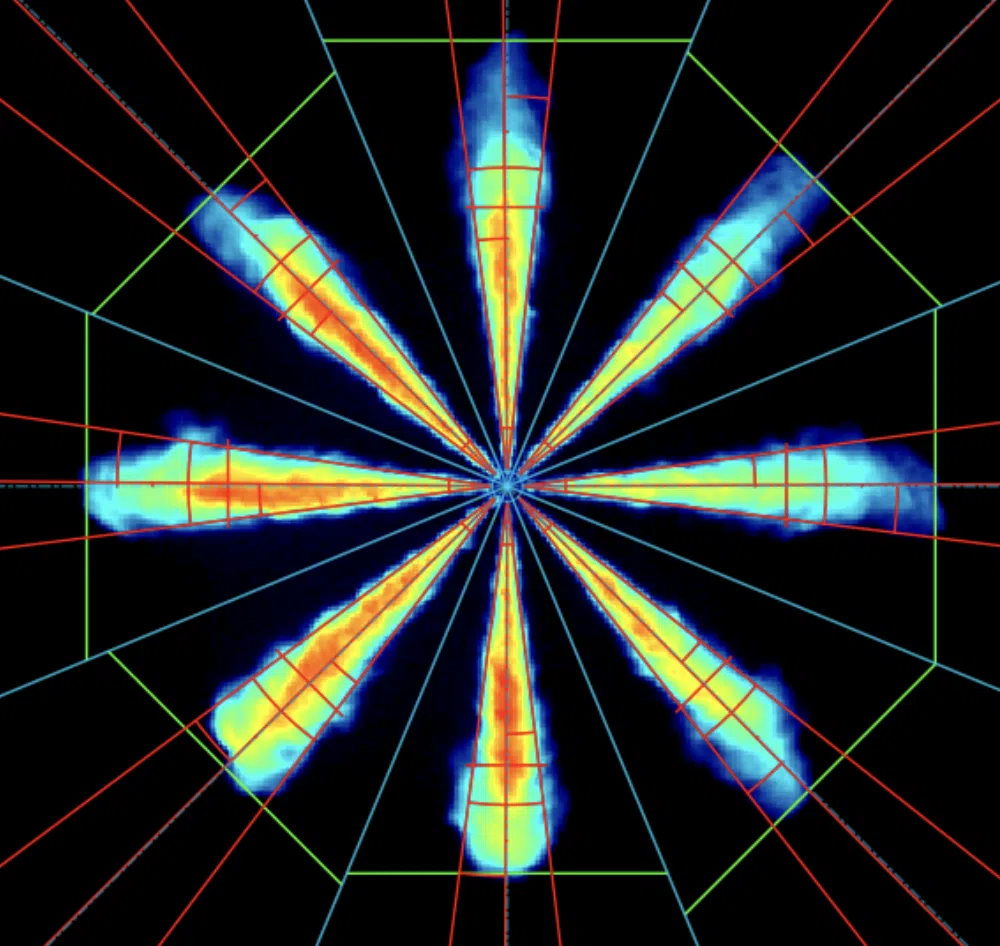

- When analyzing multi-hole nozzles, the geometry data is determined separately for each spray jet.

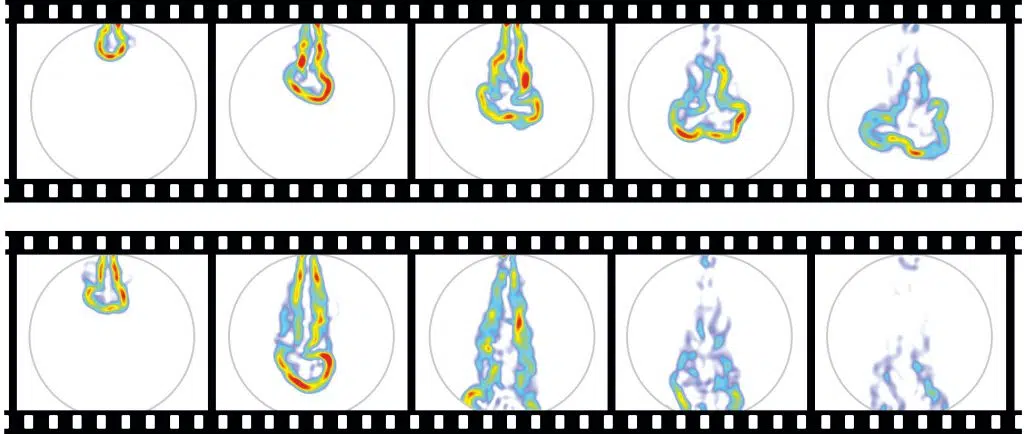

- Injection behavior & spray dynamics – evaluation of flow effects to increase efficiency.
You are currently viewing a placeholder content from YouTube. To access the actual content, click the button below. Please note that doing so will share data with third-party providers.
More InformationReal-time data for production control with precise quality management
1.
2.
3.
Connection to production control – integration into existing systems for maximum efficiency.
Intelligent quality control with the LaVision Quality Control software
The LaVision QC software is the central element for efficient, automated and seamless quality testing of fuel injections. It enables seamless data acquisition, analysis and documentation of all relevant spray parameters and ensures consistent and standard-compliant quality assurance – from the first test to series production.
You are currently viewing a placeholder content from YouTube. To access the actual content, click the button below. Please note that doing so will share data with third-party providers.
More InformationThe right partner for your product quality
Leading automotive manufacturers (OEMs), system suppliers and engine developers worldwide rely on our measurement technologies for monitoring, optimization and quality assurance in industrial production. By fully integrating our measurement systems with the powerful DaVis Quality Control software, we support our partners from research and development (R&D) to quality management (QC) and inline quality measurement in ongoing production.
Optimum fuel distribution: maximum combustion efficiency with minimum emissions
Reduction of power losses & fuel consumption: Better mixture formation for more efficient engines
Controlled particle & droplet size distribution: uniform injection without loss of power
Automated quality assurance: reproducible & objective measurement results for the highest product standards
Optical measuring methods used for online quality assurance in the production of injection systems
SprayMaster inspex
The universal system for fuel spray analysis
System & components
Measured variables & analysis areas

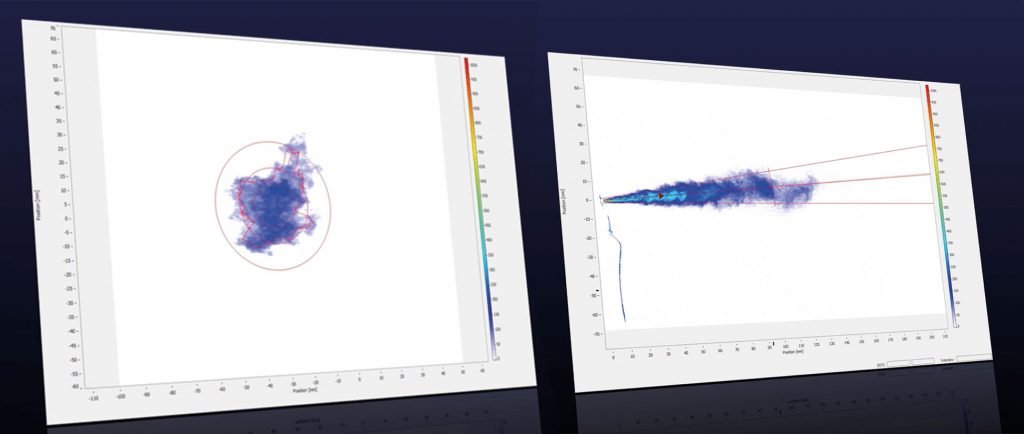

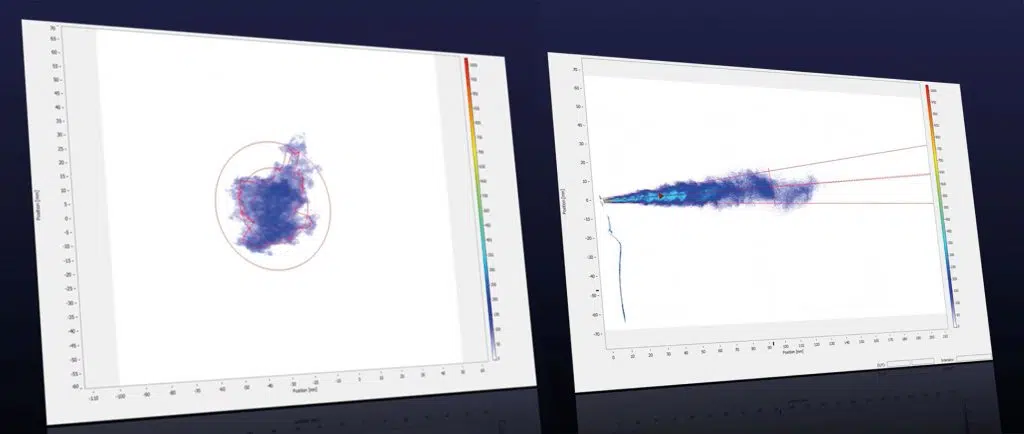

Spray pattern geometry:
The spray pattern is crucial for the function and efficiency of an injection system. The SprayMaster enables the detailed analysis of the homogeneity, size and shape of the spray pattern to ensure that the injection of a wide range of fuels has a uniform and controlled distribution:
- Spray pattern area and equivalent diameter
- Mass circle diameter according to SAE definition
- Center of gravity relative to the nozzle axis
- Shortest and longest radius in the spray pattern
- Diagrams of the radial and angular distribution of the fuel spray jet

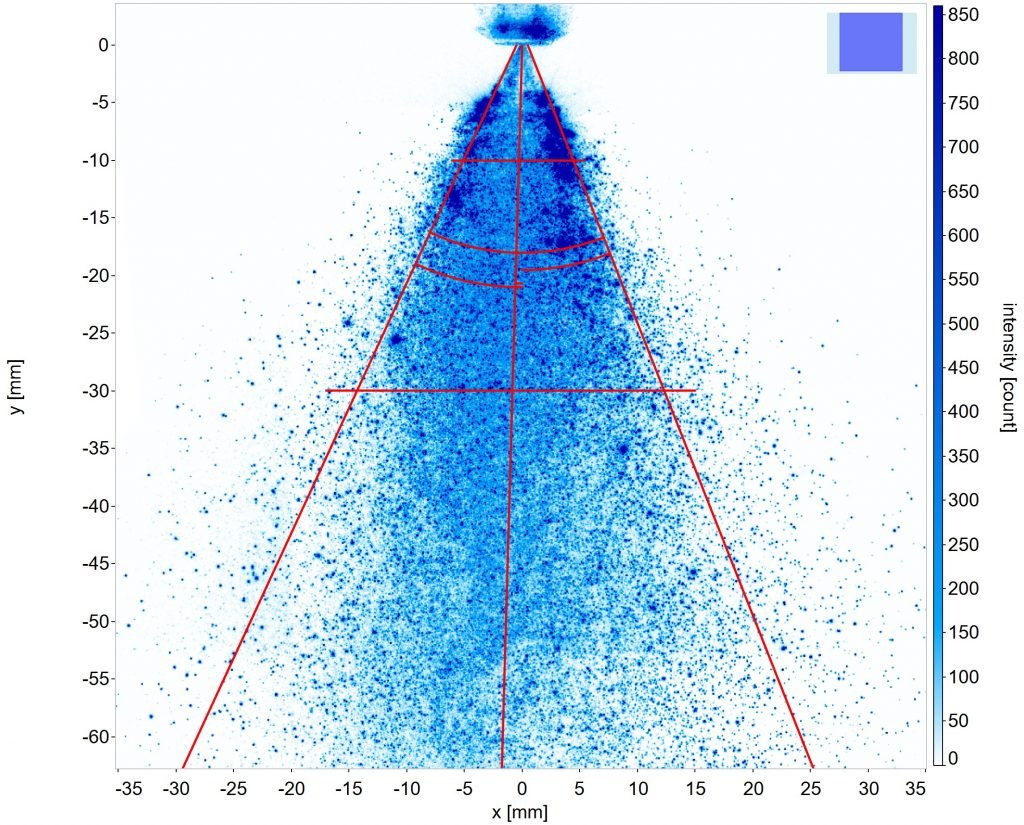

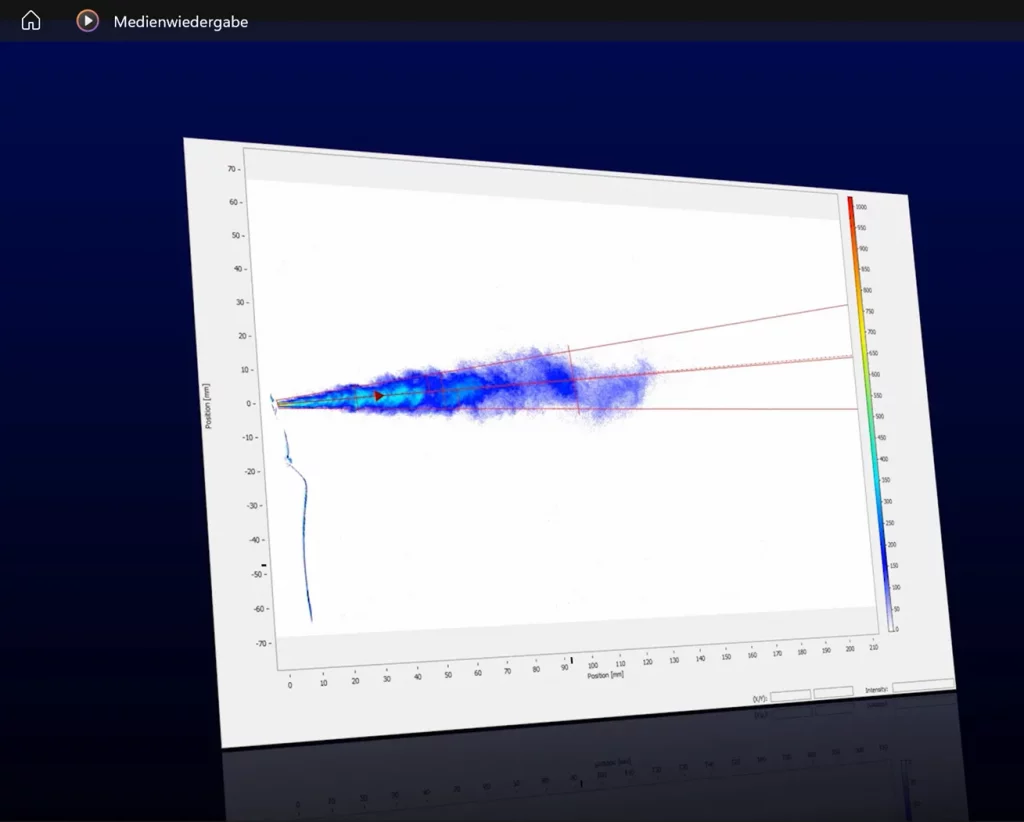

Spray cone analysis:
The system precisely measures the cone angle, penetration depth and symmetry of the fuel spray jet to ensure optimum spray distribution for various applications:
- Spray cone angle at a specified distance from the nozzle
- Tilt angle as deflection from the nozzle axis
- Both partial angles for symmetry and main direction of the spray jet

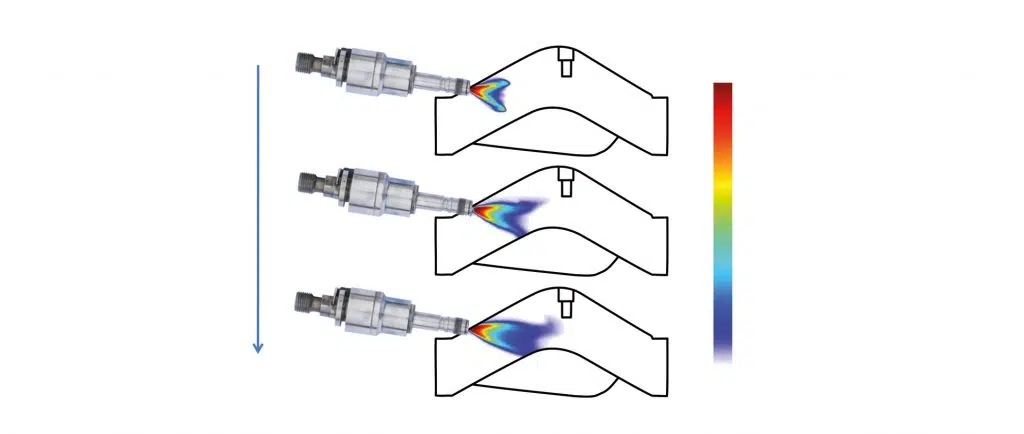

- Penetration depth of the spray cone also time-resolved
- Angular distribution of spray intensity as a measure of uniform distribution
Optimized for inline applications
- Continuous control – Reliable measuring methods for continuous monitoring of injection behavior
- Digital & reproducible results – comparability with reference test images for consistent process reliability
- Automatic test reports – efficient documentation and archiving of all measured values
- Robust evaluation – thanks to intelligent algorithms in the DaVis software
- Collaborative working – support from the powerful DaVis software, including free DaVis Viewer
- Flexible application – can be used inline, atline or online – depending on the production process

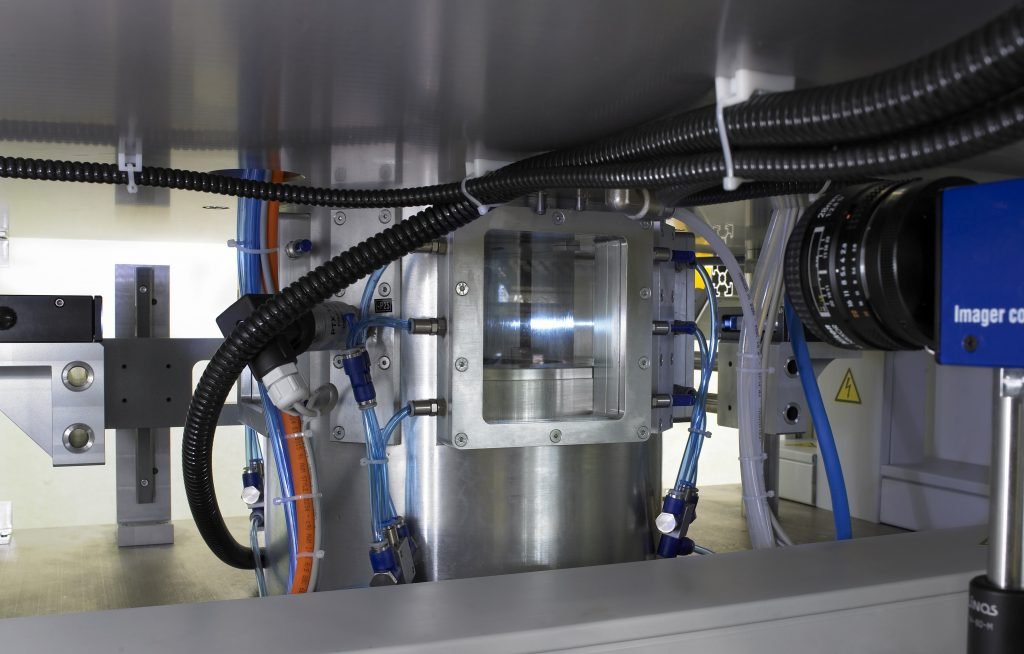

Inline precision measurements for engine injection systems in automotive production
- Optimization of fuel injection systems:
Ensuring uniform injection patterns for improved combustion. - Detection of new fuels such as hydrogen & e-fuels:
High-precision analysis for the development of emission-free drive systems. - Automated quality control in engine production:
Reduction of rejects and maximization of production quality. - Seamless traceability & data integration:
Complete process control through digital measuring systems.
LaVision - Your partner for automated
online QC measurements worldwide
- Over three decades of experience in industrial measurement technology
- Measurement technology partner to leading automotive manufacturers and machine builders
- Technology leader in optical precision measurement for fuel sprays and injection systems
- Customized solutions for online, inline and atline quality controls
Intelligent quality control with LaVision Quality Control Software - Seamless online integration into production
Advantages of LaVision Quality Control Software for your quality management
- Automated measurement data processing:
Recording, analysis and comparison of all relevant spraying parameters in a central platform - Online monitoring and control:
Live data flows directly into the production control system for immediate process optimization - Standard-compliant quality assurance:
Documentation in accordance with international standards for easy traceability and auditing - Dynamic error analysis:
Automatic detection of deviations in spray pattern, spray cone and particle distribution - Increased efficiency through automation:
Faster test cycles and higher test capacities thanks to digital processes - Long-term process optimization:
Continuous improvement of product quality and production stability
Optimum inline cooperation with the SprayMaster inspex
- Automatic data acquisition and synchronization:
No manual transfer necessary, minimizes sources of error - Real-time analysis and comparability:
Precise deviation analysis for immediate quality assessment - Flexibility for different test requirements:
Customizable test parameters for different products and application methods - Central recipe management:
Standardized test sequences for several production lines
Atline, inline and online production monitoring - maximum control in real time
- Live monitoring:
Seamless real-time monitoring of spray quality directly in the production line - Automatic corrections:
Process deviations are detected directly and forwarded to the control system - Industry-compatible interfaces:
Support for Modbus, TCP/IP and 24 V I/O for simple machine integration - Data integration into existing ERP and QM systems:
Complete traceability and analysis in production control
Powerful features for maximum control
- Automated image acquisition and analysis:
Fully automatic acquisition and calculation of spray pattern, spray cone and particle distribution - User-defined operator and administrator interfaces:
Individually customizable user interfaces for different user groups - Recipe-based tests for quick product changes:
Simplified test procedures for various spray products - Comparison with reference samples and tolerances:
Precise deviation analysis for standard-compliant quality assurance - Central data management and export functions:
Standardized data management for tabular results, spray images and test reports - Machine control via standardized protocols:
Seamless integration into automated production processes
LaVision Quality Control and Remote Software:
Online monitored optimal spray performance for your production line Fuel injection
Real-time data transmission: Continuous analysis of spray quality
Automatic process adjustment: automatic optimization
in the event of deviations
Industry-compatible interfaces Modbus,
TCP/IP, 24 V I/O
Central control & monitoring: remote access
to multiple lines
Compatible with databases and QM systems: Complete measurement data traceability
Intelligent warning function: Automatic notification of process deviations
Advantages of the LaVision solution for production quality
- Maximum production reliability – Fully automated, reproducible measurements without manual intervention.
- Reduction of rejects and rework – error detection in real time for optimized production.
- Seamless integration into production lines – connection to existing control systems for a smooth process.
- Long-term process optimization – Automatic data acquisition for continuous quality improvement.
Reliable inline measurement solutions for maximum production reliability
LaVision combines optical measurement systems with intelligent QC software and remote process monitoring. This allows spray and particle properties to be recorded inline, automatically evaluated and documented in real time – for seamless quality control of your fuel injection technology, reduced waste and stable production processes around the clock.
