Make distribution visible. Verify layer quality.
Enhance product performance. Research & development for sprays, paints and coatings

Research for perfect results
for spraying, painting and coating

The quality of a paint or coating is crucial for the protection, appearance and durability of a product. In R&D, paint sprays, paints and coatings must be precisely tailored to the respective substrates, material waste must be minimized and spray processes must be carefully controlled. LaVision offers advanced optical measurement systems that enable scientists and developers to analyze spray behavior in detail, optimize application mechanisms and develop the best formulations for their applications.

You are currently viewing a placeholder content from YouTube. To access the actual content, click the button below. Please note that doing so will share data with third-party providers.

More Information

Unblock content Accept required service and unblock content

LaVision is backed by years of expertise in supporting research and product development.

With over three decades of experience in high-precision metrology, LaVision works with the world’s leading manufacturers to make painting and coating processes more efficient, reproducible and sustainable. Our imaging systems deliver detailed data from initial development through to product optimization, significantly shortening research cycles.

Digital data and process visualizations at your fingertips for research and product development.

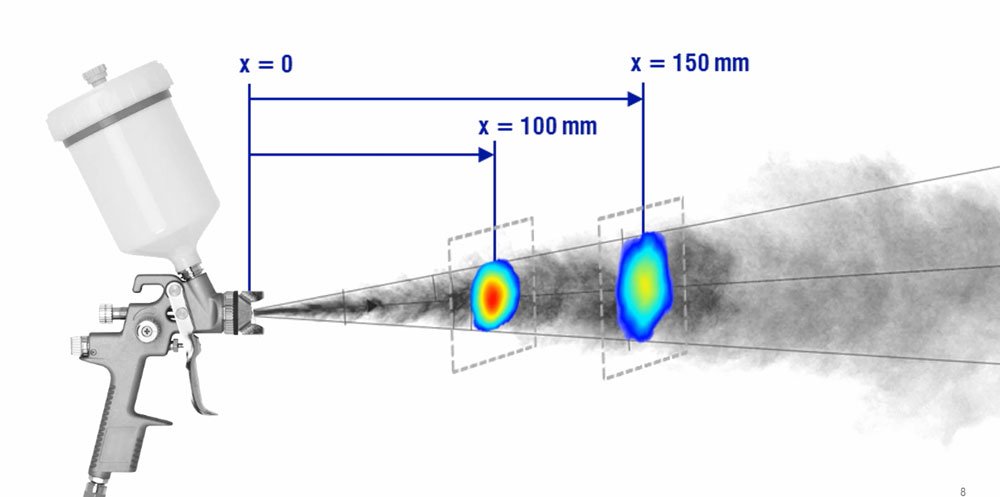

Spray pattern, size, homogeneity, shape, plume geometry, angle, penetration depth

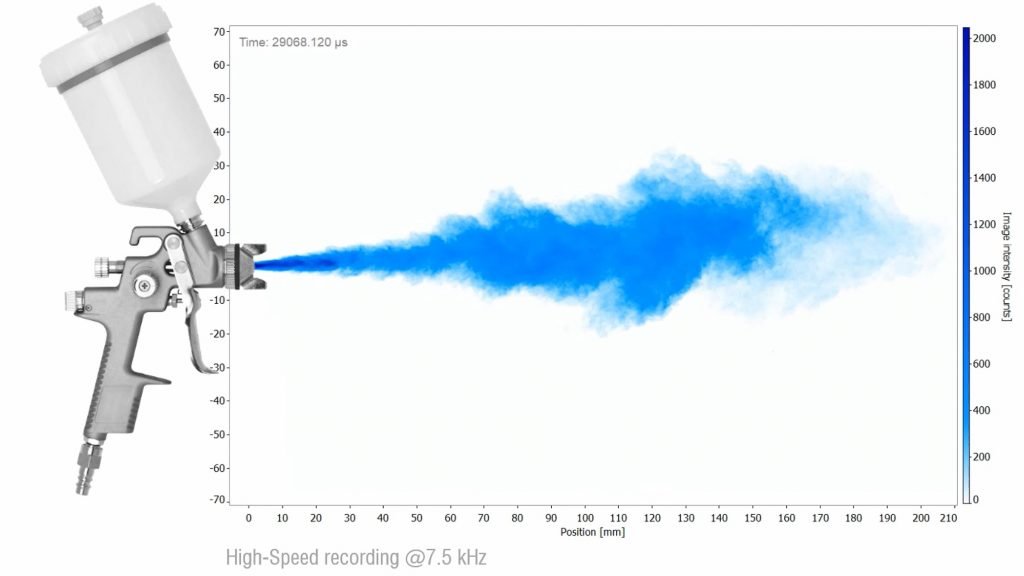

Videos of the spray plume (spray development over time)

Breakup of the spray mist

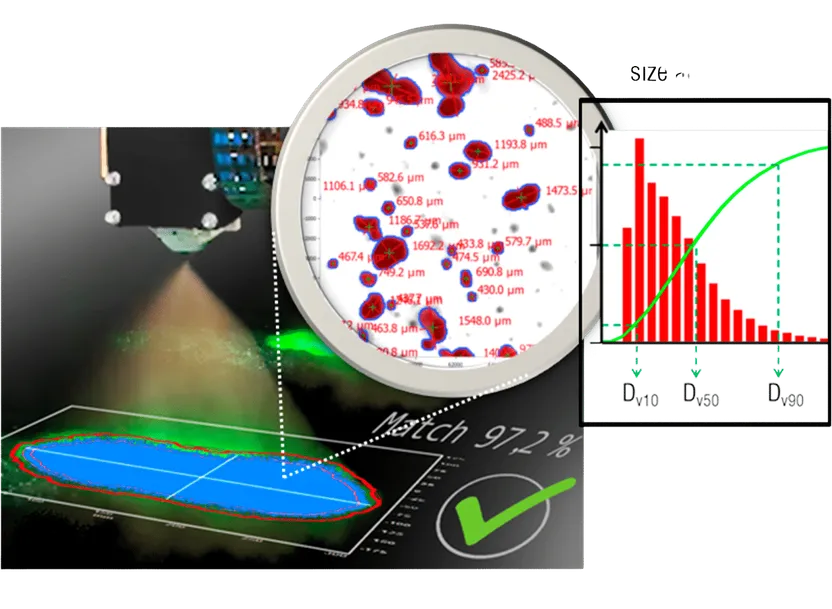

Droplet sizes and distributions

Accurate measured values thanks to innovative algorithms of the DaVis software

Innovative optical measurements: the foundation for quality results – to your advantage

Optimization of spraying processes and patterns for improved product quality
Increased efficiency through robust data evaluation – reduces development time and testing effort
Development of sustainable spraying processes by minimizing material consumption and overspray
Early detection and correction of formulation and application errors
Higher product quality with uniform and reproducible layer thicknesses & surfaces
Shorter development times through digital data analysis for accelerated processes
Collaborative working thanks to the free DaVis viewer
Comprehensive documentation from the very first test
More efficient process design with rapid adjustments based on precise, reproducible measurements
Safety and regulatory compliance – measured values serve as proof for product approvals and standards

Our visual measurement methods provide detailed data to support your research and product development:

SprayMaster inspex

The versatile optical measuring system for spray analyses

The SprayMaster inspex specializes in the detailed analysis of processes in research and development. The system delivers precise, digital measurement results to optimally design painting and coating processes right from the development phase. It enables accurate analysis of spray patterns and spray cones, while its modular platform can be individually adapted – ideal for research laboratories and product development.

Spray pattern geometry:
Homogeneity, size, shape & uniformity of the coating
Spray cone analysis:
Angle, penetration depth & distribution for perfect applications

Our universal system for spray research

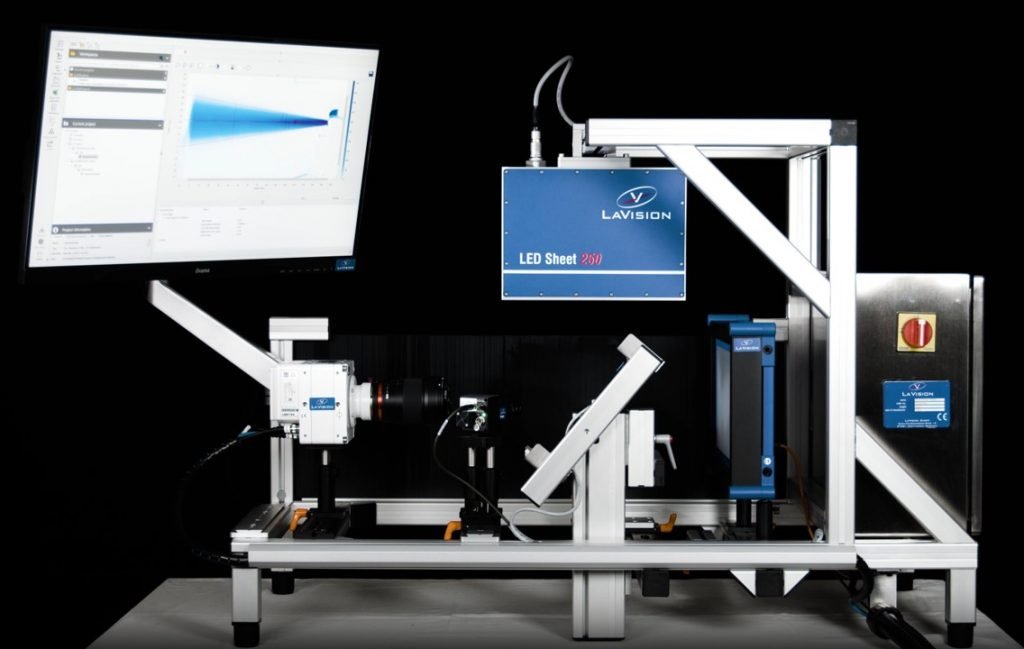

The SprayMaster inspex is the modular, optical high-precision system for R&D in paint spraying, painting and coating. It enables detailed analysis of the spray pattern and spray cone in order to optimize product quality right from the development phase. With its high degree of flexibility and expandability, the system adapts to individual R&D requirements – for scientifically sound and efficient product development.

System & components

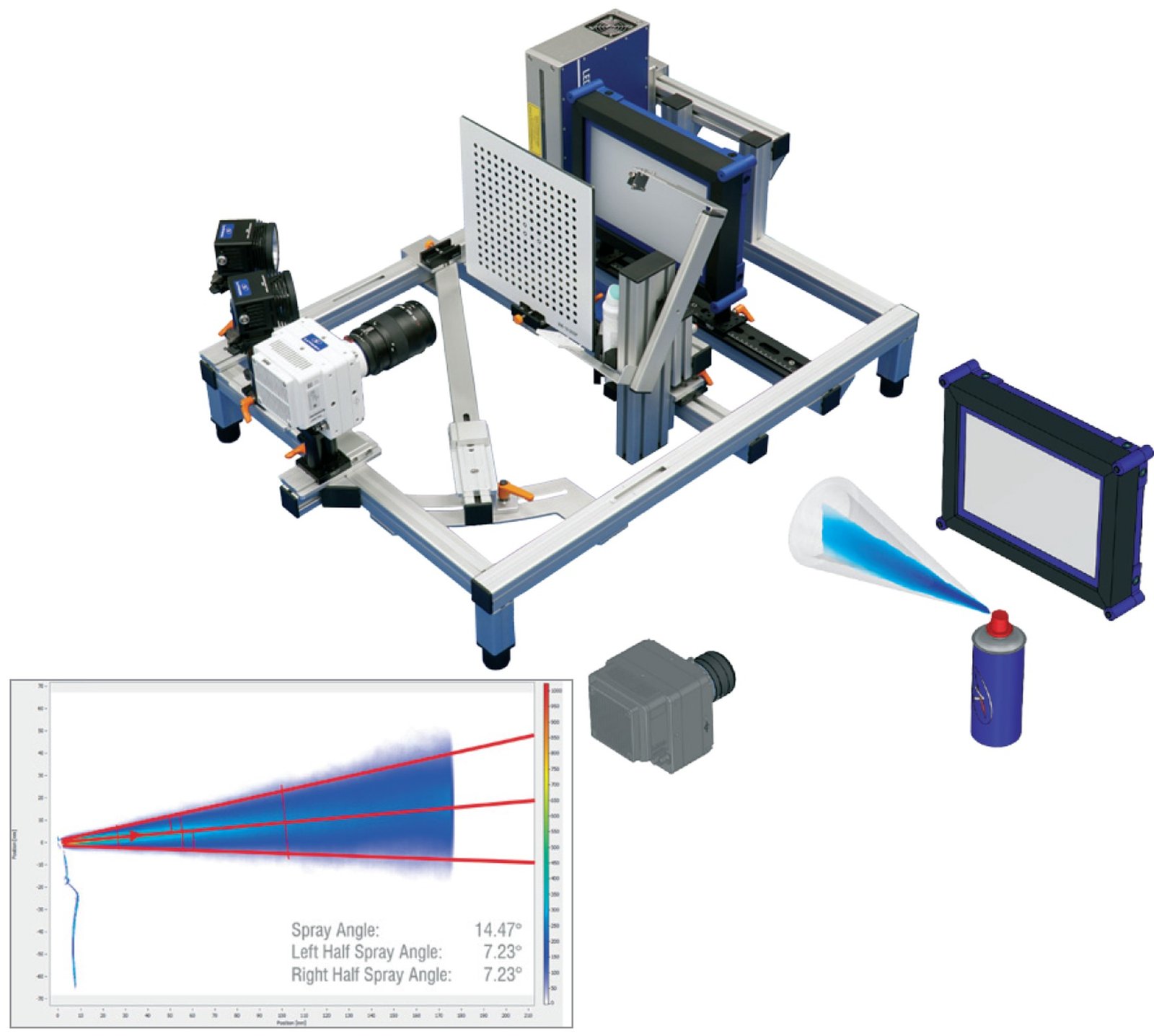

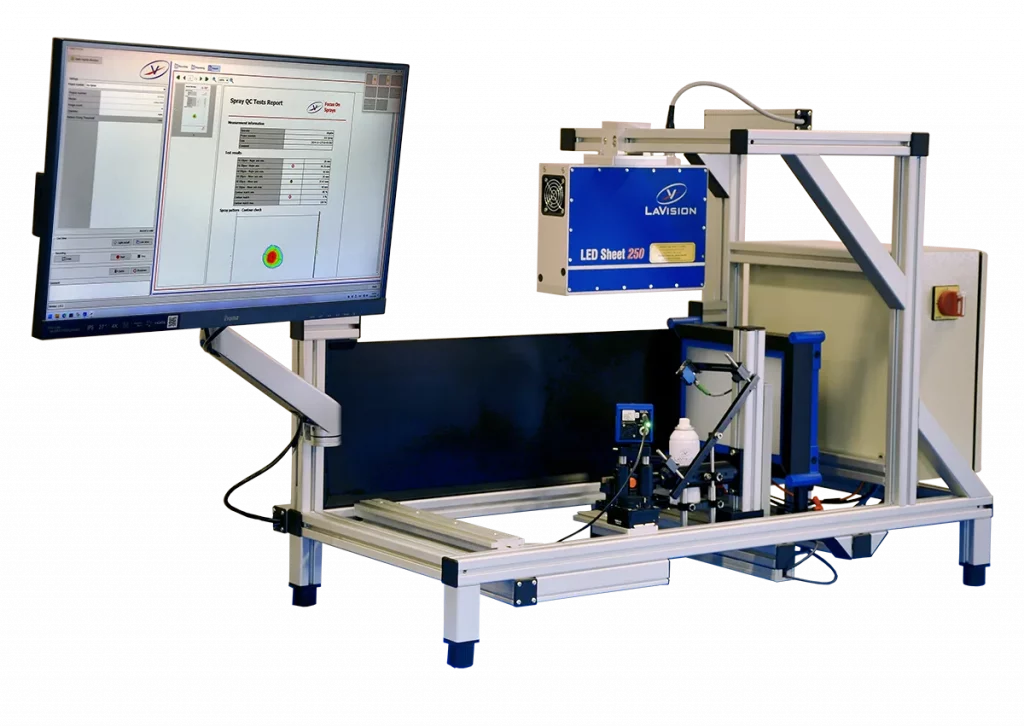

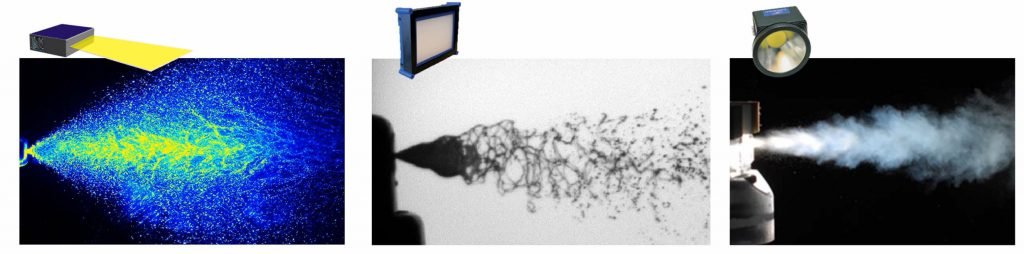

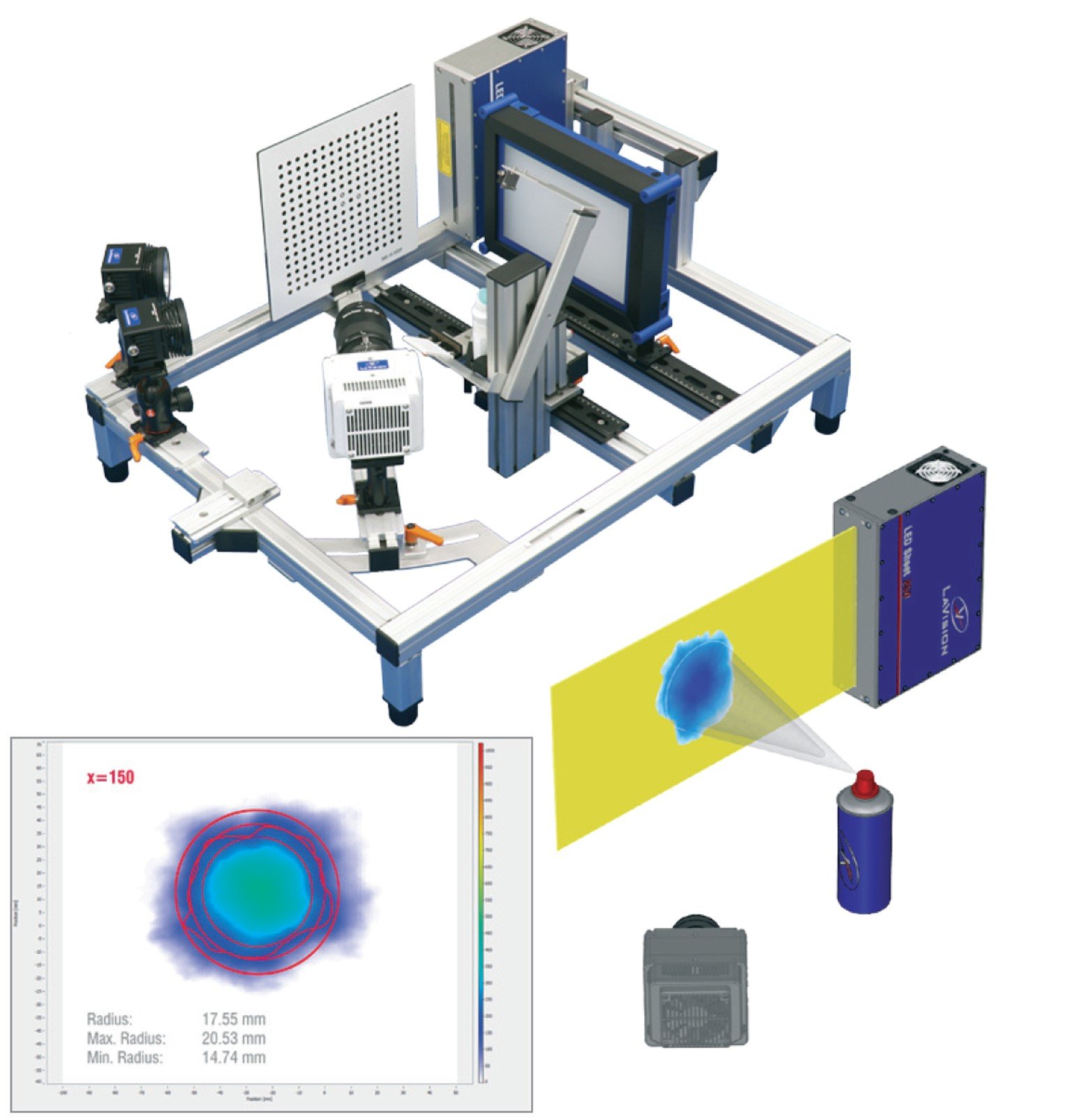

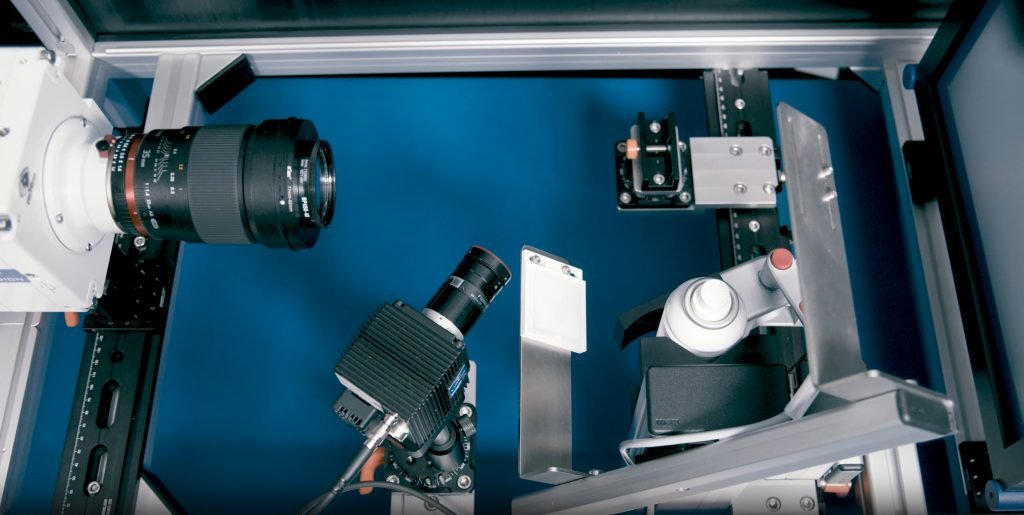

The SprayMaster inspex Base Frame, as a basic equipment concept, forms the central platform of the system. Spray bottles, spray nozzles and other applicators of various shapes and sizes can be securely positioned using a universal holder. Measurements are taken using backlit imaging, light-sectioning technology and shadowgraph analysis, enabling complete characterization of the spraying process. The system is specially designed for use in research laboratories and product development environments.

Measured variables & analysis areas

Spray pattern geometry: The spray pattern is crucial for the function and efficiency of paint, coating and color spray systems. The SprayMaster inspex enables the detailed analysis of the homogeneity, size and shape of the spray pattern to ensure that the product has a uniform and controlled distribution.

Spray cone analysis:

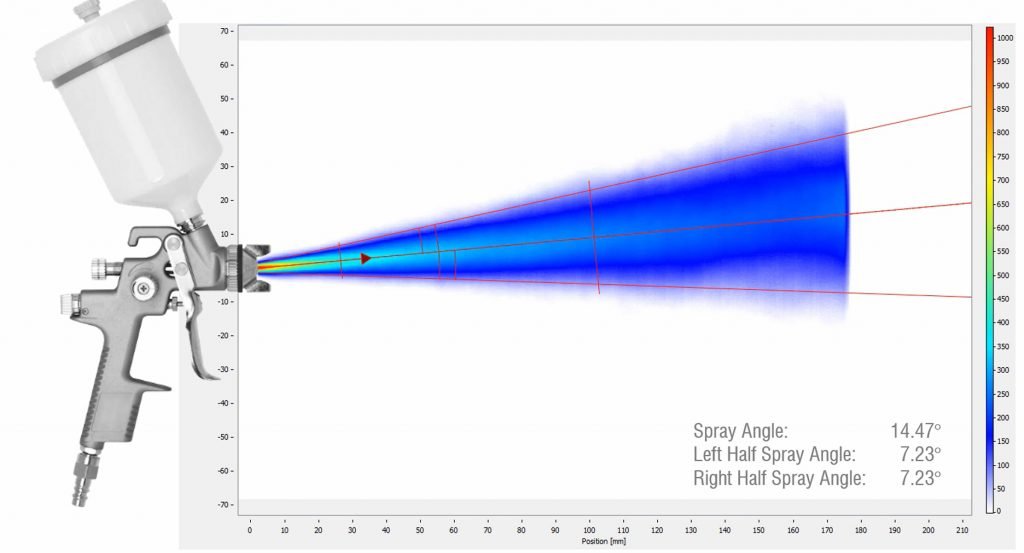

The spray cone influences the application efficiency and the subsequent homogeneity of the painted and coated surfaces. The system precisely measures the cone angle, the penetration depth and the symmetry of the spray jet to ensure optimum spray distribution for different application areas.

Modularity & flexibility

Universal holder – Adaptable for various spray nozzles, spray bottles and other applicators
Quick change between measuring tasks – Flexible adjustment for different test methods and formats
Expandability – Additional modules for specific measurements such as droplet size distributions or spray characterization
Flexible configuration – adaptation of test setups for different liquids and spray systems
Easy integration – compatible with high-speed cameras, additional sensors and other analysis modules
Long-term investment security – scalable system that grows with new research requirements

Advantages for spray research & development

Highest accuracy – scientifically based measurement methods for precise spray characterization
Digital & reproducible results – comparability with reference test images for consistent quality assurance
Automatic test reports – efficient documentation and archiving of all measured values
Detailed measured values – thanks to innovative algorithms in the DaVis software
Collaborative working – support from the powerful DaVis software, including free DaVis Viewer
Can be used in various test environments – inline, atline, online or offline for maximum flexibility

ParticleMaster inspex

Precise particle & droplet size analysis

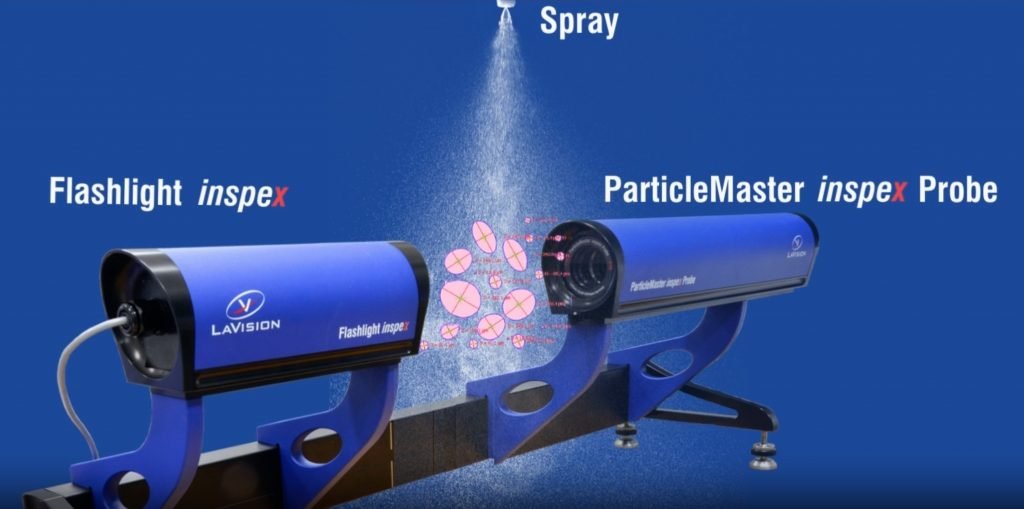

The ParticleMaster inspex specializes in the precise analysis of droplet size distribution and particle density. Its LED-based measurement technology provides reliable data for the optimization of painting and coating systems. Measured variables and analysis areas:

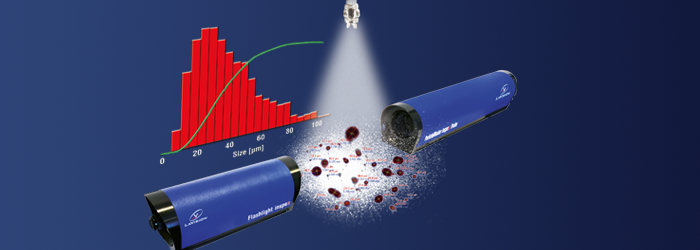

Droplet size & distribution – Detailed analysis of particle density & droplet sizes
Particle homogeneity – optimization of uniformity & density for precise coating layers
LED-based shadowgraph analysis – Highest precision for particle measurements
Flexibly expandable system – Adaptable to different liquids & application methods

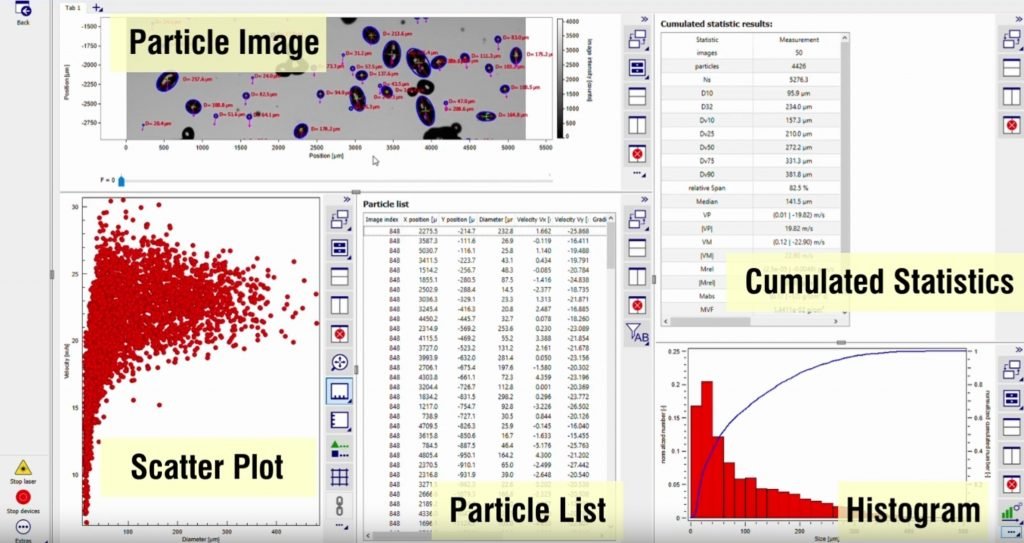

Digital data evaluation – Automated analysis & real-time visualization

Innovative paint coating and spray research

The ParticleMaster inspex is the specialized system for the detailed analysis of droplet size and particle distribution in paint sprays, paints and coatings. Its LED-based measurement technology provides precise data on the homogeneity and distribution of droplets within a spraying process. The system is ideal for optimizing formulations, application processes and dosing mechanisms in research and development.
