Analysis and Optimization of Ammonia Combustion
Ammonia combustion is physically different
Ammonia combustion differs fundamentally from the combustion of natural gas or hydrogen. NH₃ has a significantly lower laminar flame speed, a higher ignition temperature, and complex, multistage reaction kinetics involving intermediate nitrogen compounds.
Compared to hydrogen, ammonia is less reactive but exhibits significant instability during flame stabilization. At the same time, NH₃ is toxic and harmful to health even at low concentrations, which places high demands on safety and leak control.
The advantages of ammonia combustion lie primarily in its higher energy density, ease of storage and transport, established infrastructure compared to hydrogen, and CO₂-free combustion.
Characteristic features of ammonia are
Three Key Challenges in Ammonia Combustion
Slow Reaction Kinetics and Flame Stabilization
Complex Nitrogen Chemistry and NOx Formation
Ammonia already contains nitrogen. This results in additional fuel-related NOx mechanisms in addition to thermal NOx. Typical issues include:
• Increased NO and NO₂ formation
• N₂O emissions
• Ammonia slip due to incomplete oxidation
Emission formation is highly dependent on temperature and the composition of the mixture and requires a detailed analysis of the reaction pathways.
Safety and Toxicity
NH₃ is toxic and acutely hazardous at higher concentrations. Even small leaks can pose health risks. Safe handling requires:
• Reliable leak detection
• Precise monitoring of dispersion patterns
• Analysis of potential hazard zones
• Minimization of unburned ammonia in the exhaust gas
Combustion analysis and safety monitoring are therefore inextricably linked.
Benefits of Optical Measurement Technology in Ammonia Combustion
Optical combustion diagnostics enable the direct investigation of the complex nitrogen chemistry in the NH₃ flame. Reaction zones, temperature fields, intermediate products, and emission formation become visible with spatial and temporal resolution.
Of particular importance is the identification of
• local NOx formation zones
• areas of unstable flames
• concentrations of incompletely reacted NH₃
• transient effects during load changes
Through a correlated analysis of temperature, radical species, and flow fields, specific optimization measures for stability and emission reduction can be derived.
From the Flame to a Validated Optimization Strategy
LaVision combines high-resolution imaging with quantitative analysis and chemical-physical interpretation.
The results are
• Spatially resolved NOx and N₂O emission maps
• Analysis of ammonia slip mechanisms
• Time-resolved stability characterization
• CFD validation data for complex reaction models
Ammonia combustion thus transforms from a reaction system that is difficult to control into a measurable and optimizable process with physical transparency.
Relevant Optical Analysis Methods in Ammonia Combustion
Flame Emission and Chemiluminescence Imaging
Laser-Induced Fluorescence (LIF)
Rayleigh and Raman Thermometry

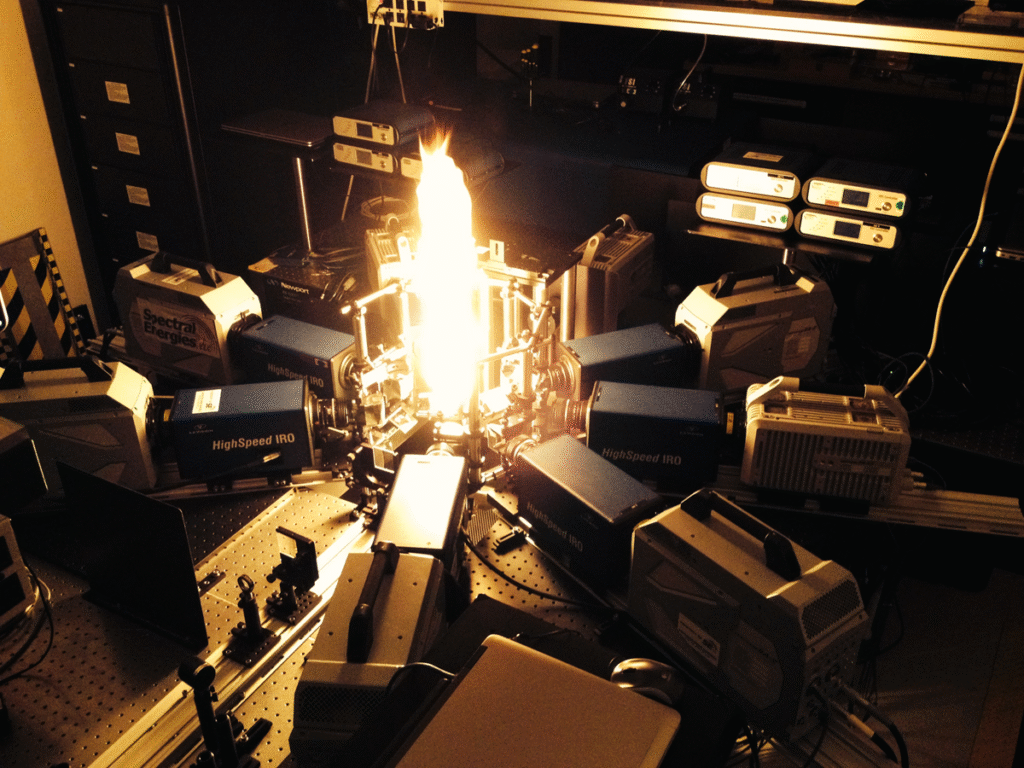

High-Speed and Time-Resolved Imaging
The Growing Industrial Importance of Ammonia Combustion
Ammonia is increasingly being used as a carbon-free energy source for
- maritime applications
- industrial process heat
- Power Plants
- Co-firing in Existing Facilities
examined.
Ammonia (NH₃) is considered a potential storage and transport medium for renewable energy, particularly in the shipping industry and in large-scale industrial facilities. However, converting existing systems to ammonia requires a thorough combustion analysis to ensure emissions control, stability, and safety.
